ㆍASI-6120S ㆍASI-6120A ㆍASI-6020S ㆍASI-6020A ㆍASI-6110S ㆍASI-6110A
Real Time Transport Stream Demultiplexer for real time forwarding of selected programs (PIDs) from Complex Multi-program Transport Streams.

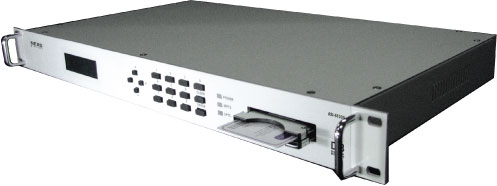

The ASI-6120S is an integrated receiver decoder with encoder designed to receive DVB Compliant Digital video signals transmitted by satellite.

The input to the ASI-6120S is an RF signal which is processed to produce composite video, audio, auxiliary data and relay cueing signals.

The ASI-6120S can receive encrypted service via common interface module, as well as FTA broadcast.
Basic Features
MPEG-II Digital & Fully DVB Compliant.
MPEG-II Video(MP@ML) decoding.
MPEG-I Audio Layer1, Layer2 decoding.
MPEG-II Video (MP@ML) encoding 2.7 to 14.4 Mbps
MPEG-I Audio Layer2 encoding.
Digital Tuner with Loop-through
Supports User friendly LCD Menu with Full function
Front Panel Control (Graphic LCD Display)
RS232C Port for Additional Information Service and Upgrading System Software
Input Frequency 950~2150MHz, Symbol rate 2~45Ms/s
MPTS-ASI Output of selected TP.
SPTS-ASI Output of selected Program.
Based on 1RU rack-mount Type.
Setup and Forget Technology.
Composite output
Benefic
Powerful processing that convert incoming satellite signal to ASI (MPTS and SPTS)
For re-transmission of Satellite signal to Local Network.
SGenerators an ASI output that can be fed into the local head-end’s 16 ~ 256QAM modulator or re-multiplexer
Compact 1U Rack size unit and easy-to-use front panel control.
Capacity for storing up to 1000 Channels
Open standards based using flexibility of DVB Common Interface (DVB-CI) modules.
Optional Features
MODEL : FTA / CI
Specification
Tuner & Channel
Input Connector IEC 169-24, Female
Input Frequency

 950 ~ 2150 MHz
RF Input Level -65 to -25dBm
LNB Power & Polarization Vertical: +14V
Horizontal: +18.5V
Demodulator
Waveform QPSK
Symbol Rate 2 ~ 45 Ms/s
FEC Decoder 1/2, 2/3, 3/4, 5/6 and 7/8 with Constraint Length K=7
De-multiplexer
Standard MPEG-2 ISO/IEC 13818
Audio Mode Up to 60Mbits/s
Video
Standard MPEG-II MP@ML
Input Bit Rate Max. 15Mbit/s
TV Standard PAL/NTSC/SECAM
Active Pixel 720 pixel × 576 lines × 25frames
S/N under Unweight 60dB Min.
Audio
Standard MPEG-I Layer 1/2
Mode Stereo, Joint Stereo, Mono and Dual Mono
Bandwidth 20Hz ~ 20Khz at 1Khz
Output Level 3Vpp Max or 5dB Min at 1Khz
Output Impedance 680Ω
Conditional Access Interface
Common Interface 2
Output

IDVB-ASI Compatible

1 MPTS, 1 SPTS
Data Interface
RS-232 CH 21~69
System Resources
CPU Conexant C24146-15A (32bit RICS CPU/ 146MIPS /133MHz)
FLASH Memory 4MB
SDRAM 16MB
Power
Input Power 100V ~ 250V AC
Power consumption Max. 45W
Operating frequency 50/60 Hz
Protection Separate internal fuse
Environmental

Operating temperature

0 ~ 40°C
Condition
Storage 110 ~ 50°C
Storage humidity range 5~90% Rh Non condensing
Operating humidity range 10~85% Rh Non condensing
Dimension(H x W x D) 1U RACK Type
Agency Approvals

Operating temperature


※ The specifications are subject to change without notice.
