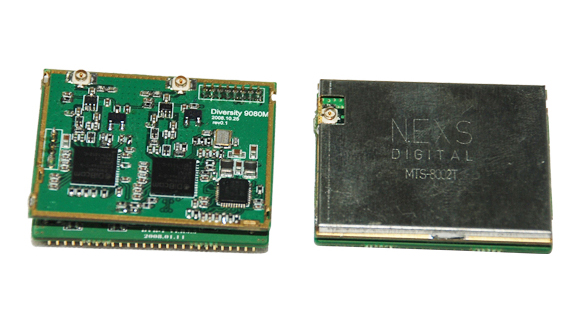

Slim dimension (mm) 40(W) × 50(D) Support fastest re-search between two stations/nations Low power design Proven interface protocol with main part Various output support
- CVBS, RGB, ITU656
- Audio R/L, I2S Integrating in others products
- Car Navigation, Car Audio, Portable Device(PMP, Mini TV, etc.)
Basic Features
MPEG-II Digital & Fully DVB-T compliant. 256Color OSD(on screen display) support(Chinese, English). PIG(picture in graphic) support EPG(Electronic Program Guide) & Information-Plate support. Multi-lingual Audio support Channel search in automatic, manual and network Max. 500 channels receivable 5 favorite channel groups support (Max. 40 channels in each group). Channel list mode in All, Favorite, Scrambled Channel sorting by channel number, Alphabet, FTA Software Upgrade service. Parental control with block on system, all channels and programs by age limitation. Timer setting(Automatic Turn on & off daily) and GMT, Time Offset support Extended information shows the full program information Auto language selection of program for Audio language with user setting in menu.
Specification
Tuner & Channel
Frequency Range
44MHz to 885MHz
Signal Level
-10 to -60dBm
Mode
2k, 8K
Demodulation
TDS-OFDM
Guard Intervals
1/9, 1/4
FEC mode
0.4, 0.6, 0.8
Video Decoder
CPU
Chips&Media CMS2131ADF_BGA
Transport Stream
MPEG-2 ISO/IEC 13818 Transport Stream Specification
Special Features
Slim dimension (mm) 40(W) × 50(D)
