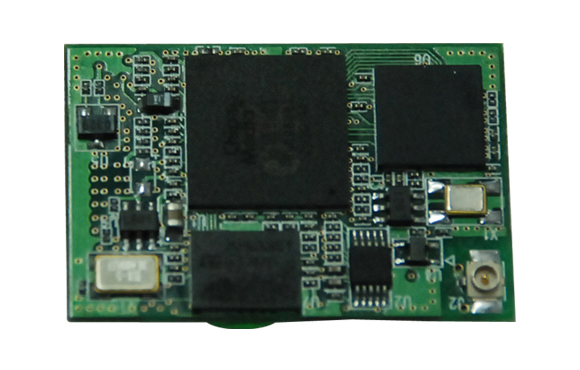

Our
module products are perfectly suited for receiving digital terrestrial
broadcasts from free-to-view to encrypted services with conditional
access system. They
may be integrated in TV, Car navigation, PMP, Multimedia Player
so that those products can receive and display real broadcasting
signal. NEXS provide proven data protocol to control these module
and customization service to finish perfect integration with
customer's product.
|
| |
 Special Features |
 Slim dimension (mm) 50(W)×60(D)
Support high-speed mobility & diversity(optional)
Support fastest re-search between two stations/nations
Low power design
Proven interface protocol with main part
Various output support
- CVBS, RGB, ITU656
- Audio R/L, I2S
Integrating in others products
- Car Navigation, Car Audio, Portable Device(PMP, Mini TV, etc.) |
| Basic Features |
MPEG-II Digital & Fully DMB-TH compliant.
256Color OSD(on screen display) support(Chinese, English)
PIG(picture in graphic) support
EPG(Electronic Program Guide) & Information-Plate support
Multi-lingual Audio support
Channel search in automatic, manual and network
Max. 500 channels receivable
5 favorite channel groups support
(Max. 40 channels in each group).
Channel list mode in All, Favorite, Scrambled
Channel sorting by channel number, Alphabet, FTA
Software Upgrade service.
Parental control with block on system, all channels
and programs by age limitation.
Timer setting(Automatic Turn on & off daily)
and GMT, Time Offset support
Extended information shows the full program information
Auto language selection of program for Audio language with user setting in menu. |
| Optional Features |
NMM-1000T
: Mobile DVB-T MPEG-2 SD FTA
NMM-1000DTMB : DTMB version of NMM-1000T |
| Specification |
| Tuner & Channel |
| Demodulation |
DVB-T |
|
| Waveform |
COFDM |
|
| Constellation |
QPSK, 16QAM, 64QAM |
|
| Freq. Range |
45~230 MHz(VHF), 470~862MHz(UHF) |
|
| Input |
IEC 169-2 Female |
|
| Signal Level |
-10 to -83 dBm |
|
|
| MPEG Transport Stream &
Audio/Video Decoding |
| Transport Stream |
MPEG-2 ISO/IEC 13818 TS Specification |
|
| Profile Level |
MPEG-2 MP@ML |
|
| Aspect Ratio |
4:3 Pan & Scan, 16:9 Letter Box |
|
| Video Resolution |
576i |
|
| Audio Decoding |
MPEG/MusiCam Layer I & II |
|
| Audio Mode |
Single/Dual Mono/Joint Stereo/Stereo |
|
|
| Audio / Video / Data In /Out
|
| CI |
- |
|
| BT656 |
- |
|
| RCA |
1 Video & 2 Audio |
|
| RGB |
YPbPr |
|
| UART |
Module control & Data protocol |
|
|
| A/V & Data In / Out |
| Video |
RCA Video Output (CVBS), RGB(Optional), ITU656 |
|
| Audio R/L |
Audio R/L Output (Volume and Mute control),
I2S(Resolution: 20 bits DAC, MAX. 2Vrms) |
|
|
| Power Supply |
| Input Voltage |
5V, 3.3V, 1.8V & etc. |
|
| Power consumption |
Max. 1.6W |
|
|
| Physical Specifications |
| Size |
About 23 × 24(mm) |
|
| Operating Temp |
0℃ to +45℃ |
|
| Storage Humidity |
-10 to +70 Degree C |
|
|
