Slim dimension (mm) 50(W) × 35(D)
- 38(W) x 30(D) × 5.5(H) mm will be available soon Support high-speed mobility & diversity(optional) Low power design Proven interface protocol with main part Various output support
- CVBS, RGB, ITU656
- Audio R/L Integrating in others products
- Car Navigation, Car Audio, Portable Device(PMP, Mini TV, etc.) 7-Days EPG support
Basic Features
MPEG-II Digital & Fully DMB-TH compliant. 256Color OSD(on screen display) support PIG(picture in graphic) support EPG(Electronic Program Guide) & Information-Plate support. Multi-lingual Audio support Channel search in automatic, manual and network Max. 500 channels receivable 5 favorite channel groups support (Max. 40 channels in each group). Channel list mode in All, Favorite, Scrambled Channel sorting by channel number, Alphabet, FTA Software Upgrade service. Parental control with block on system, all channels and programs by age limitation. Timer setting(Automatic Turn on & off daily) and GMT, Time Offset support Extended information shows the full program information Auto language selection of program for Audio language with user setting in menu.
Optional Features
MODEL : FTA / CI / CAS Support Nordig Specification
Specification
Tuner & Channel
Demodulation
DVB-T
Waveform
COFDM
Constellation
QPSK, 16QAM, 64QAM
Freq. Range
45~230 MHz(VHF), 470~862MHz(UHF)
Input
IEC 169-2 Female
Signal Level
-10 to -83 dBm
MPEG Transport Stream &
Audio/Video Decoding
Transport Stream
MPEG-2 ISO/IEC 13818 TS Specification
Profile Level
MPEG-2 MP@ML/HL, MPEG-4 AVC/H.264 LP@L4
Aspect Ratio
4:3 Pan & Scan, 16:9 Letter Box
Video Resolution
1080i, 720p, 576p, 576i
Audio Decoding
MPEG/MusiCam Layer I & II
Audio Mode
Single/Dual Mono/Joint Stereo/Stereo
Audio / Video / Data In /Out
CI
-
BT656
Supported
RCA
1 Video & 2 Audio
RGB
YPbPr
UART
Module control & Data protocol
Power Supply
Input Voltage
90 ~ 250V AC, 50/60Hz SMPS type
Power consumption
Max. 10W
Physical Specifications
Size
About 290 × 60 × 225(mm)
Operating Temp
0℃ to +45℃
Storage Humidity
-10 to +70 Degree C
※The specifications are subject to change without notice.

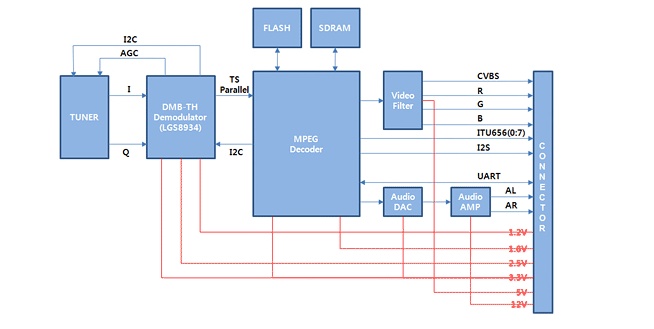

Block Diagram
