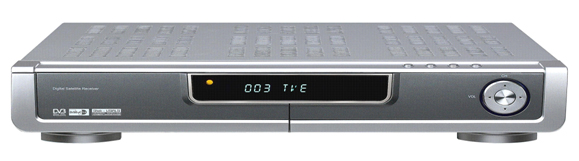

The SMB-3180S is a set-top box perfectly suited for
receiving digital satellite broadcasts from both FTA and CAS embedded
pay channels, and encrypted services via common interface module.
Viewers can now enjoy both outstanding stability and comfort in this affordable set-top box loaded with the very best technology.
The simple installation and operation, user-friendly three-dimensional OSD (on screen display), highest quality audio output and advanced video clarity are all designed to enrich the viewer experience.
In addition to providing more channels with its new highly sensitive technology, these boxes boasts the Electronic Program Guide (EPG) and information plate that enable subtitles and teletext for a bounty of useful information on programs and broadcast signals for an exceptional digital experience.
|
 Basic Features |
 MPEG-II Digital & Fully DVB-S compliant.
Embedded 2 CAS (CONAX, NDS)
Scrambled channel receivable with DVB CI
DiSEqC1.2 positioner for multi-satellites
Multi LNB controlled by DiSEqC 1.0, 22 KHz and 0/12 volt switching
Automatic and Manual PAL/NTSC election
Installation Wizard helps easy and automatic installation step by step.
Automatic Software Upgrade service.(Over To Air and serial connection RS-232C)
256 Color OSD support(Multi-languages support, default English)
OSD Teletext Decoding & VBI teletext support
Subtitle supports EBU and DVB subtitle
PIG(picture in graphic) support
EPG(Electronic Program Guide) & Information-Plate support
Multi-lingual Audio support
Channel search in automatic, manual and network
Max. 5000 channels receivable
5 favorite channel groups support (Max. 100 channels in each group).
Channel list mode in All, Favorite, Scrambled
Channel sorting by channel number, Alphabet, FTA
Parental control with block on system, all channels and programs by age limitation.
Timer setting(Automatic Turn on & off daily) and GMT, Time Offset support
Extended information shows the full program information
Auto language selection of program for Audio language with user setting in menu.
Screen Division (4, 9, Stylish Screen)
Variable Display Ratio support(4:3, letter box, 16:9 full screen) |
| Optional Features |
| support Nordig Specification |
| Specification |
| Tuner & Channel |
| Input Connector |
F-type, IEC-169-24, Female |
|
| Frequency Range |
950MHz to 2150MHz |
|
| Signal Level |
-65 to -25dBm |
|
| LNB Power & Polarization |
Vertical : +14V
Horizontal : +18.5V
Correct : 400mA Max |
|
| 22KHz Tone |
Frequency : 22 ± 4kHz, Amplitude : 0.6 ± 0.2V |
|
| DiSEqC Control |
Version 1.0/1.1/1.2/2.0 Compatible, USALS |
|
| Demodulation |
QPSK |
|
| Input Symbol Rate |
1 ~ 45Ms/s |
|
| FEC mode |
1/2, 2/3, 3/4, 5/6 and 7/8 with Constraint Length K=7 |
|
|
| MPEG Transport Stream A/V Decoding |
| Transport Stream |
MPEG-2 ISO/IEC 13818 Transport Stream Specification |
|
| Profile Level |
MPEG2 MP@ML |
|
| Video Input Rate |
72.5Mbit/s Max |
|
| Aspect Ratio |
4:3, 16:9, Letter Box |
|
| Video Resolution |
720×576, 720×480 |
|
| Audio Decoding |
MPEG/MusiCam Layer I/II |
|
| Audio Mode |
Single Mono/Dual Mono/Joint Stereo/Stereo |
|
|
|
| Memory |
| Flash Memory |
2Mbyte |
|
| SDRAM |
16Mbyte |
|
| EEPROM |
8Kbyte |
|
|
| RF Modular |
| RF Input/Loop-through output |
75Ω, IEC169-2 |
|
| Frequency |
47 ~ 862 MHz |
|
| Output Channel |
CH 21~69 |
|
| TV Standard |
PAL B/G/I/D/K |
|
|
| A/V & Data In / Out |
| Video |
RCA/SCART Video output (CVBS,RGB,S-Video) |
|
| Audio R/L |
RCA/SCART Volume and mute control (Resolution : 20bits) |
|
| RS-232C |
Transfer Rate 115,200bps, 3pin socket type |
|
|
| Power Supply |
| Input Voltage |
90 ~ 250V AC, 50/60Hz |
|
| Type |
Switching Mode Power Supply (SMPS) |
|
| Power consumption |
Max. 30W |
|
| Protection |
Separate Internal Fuse The input should be protected against lighting |
|
|
| Physical Specifications |
| Size |
About 340×60×260 (mm) |
|
| Operating Temp |
0℃ to +45℃ |
|
| Storage Humidity |
5% ~ 95% RH (Non-Condensing) |
|
|
|
